How to Replace a Car Evaporator

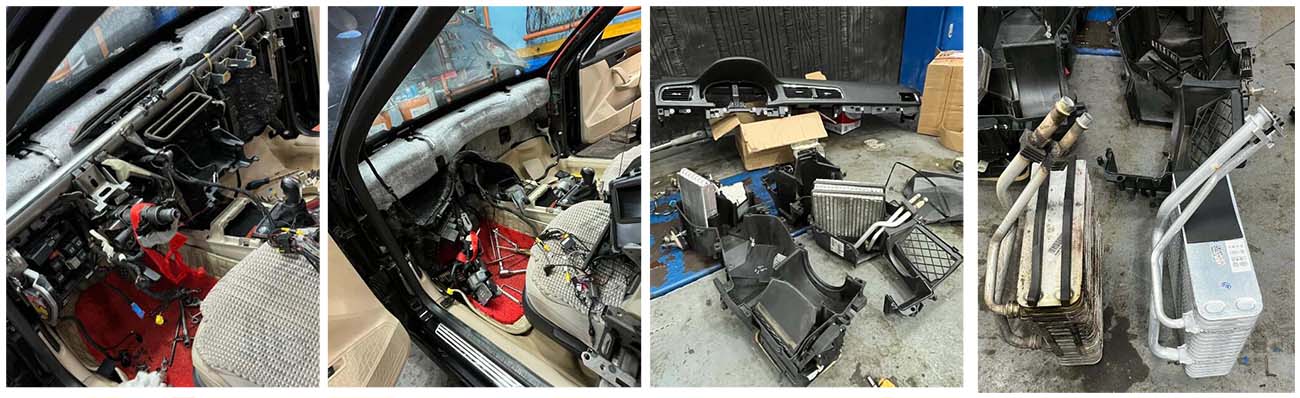

Replacing a car evaporator is a task that requires some technical knowledge and tools. Below is a step-by-step guide to help you understand the process. And the picture that replace the evaporator of Volkswagen Lavida 2009 help you to understand more directly. If you're not confident in your skills, it's recommended to seek professional assistance.

1. Preparation

• Tools Needed: Screwdrivers, wrenches, refrigerant recovery machine, pressure gauge, vacuum pump, and safety gear.
•  Ready a new evaporator:Obtain a new evaporator that matches the make, model, and year of your vehicle.
•  Safety First: Wear gloves and safety glasses. Ensure the car is turned off and the engine is cool.

2. Drain the refrigerant

• Connect a refrigerant recovery machine to the A/C system and follow the manufacturer's instructions to recover the refrigerant safely.
•  Release the pressure from the A/C system by opening the high and low pressure valves of the manifold gauge set.

3. Remove Related Components

• Dashboard Removal: In most cars, the evaporator is located behind the dashboard. Carefully remove the dashboard to access the evaporator.
• Disconnect Connections: Detach the refrigerant lines and electrical connectors attached to the evaporator.
• Noted:Detach the mounting bolts or screws that secure the evaporator to the HVAC housing.

4. Remove the Old Evaporator

• Gently pull and slide the evaporator out of the HVAC housing.
• Take care not to damage any surrounding components, such as the expansion valve or heater core.

5. Install the New Evaporator

• Align the new evaporator with the HVAC housing and secure it in place using the mounting bolts or screws.
• Reconnect the refrigerant lines, electrical connections, and drain hose to the new evaporator.
• Ensure proper sealing by using new O-rings or gaskets where necessary.

6.Reassemble the A/C system:

•  Put back the components that were removed initially, such as the dashboard and glove compartment.
• Double-check all connections and fittings to ensure they are tight and properly secured.

7.Vacuum and recharge the A/C system:

• Connect a vacuum pump to the A/C system and evacuate any moisture and air for at least 30 minutes.Close the manifold valves and charge the A/C system with the recommended amount of refrigerant according to the manufacturer's specifications.
• Perform a final leak test to ensure there are no refrigerant leaks.

8. Test the A/C system:

• Start the engine and turn on the air conditioner to check for proper cooling and operation.
• Monitor the A/C system for any abnormalities, such as unusual noises or odors.

Important Notes

Handle refrigerant carefully, as it can be hazardous.

If you’re unsure about any step, consult a professional mechanic to avoid damaging your car’s air conditioning system.



Tool Checklist

Screwdrivers

Wrenches

Refrigerant recovery machine

Pressure gauge

Vacuum pump



Safety Tips

Always wear protective gear.

Work in a well-ventilated area.

Follow your car’s manual for specific instructions.
